Danfoss RX1 Wiring?

[cageyone23]

Hi All,
First time poster here, so be gentle.

Here's the scenario, I want to pair a Danfoss RX1 Reciever to my Main Combi 30 HE. Even though I consider myself as a confident DIY'er I've hit a brick wall with regards to wiring the terminals on the RX1 to the Main Combi 30 HE.
The Live and Neutral seems straight forward, but I'm at a loss as to the remaining terminal blocks on Thermostat and boiler.

Here are some Pictures that might help.

Any help and guidance would be most appreciated.

Cheers

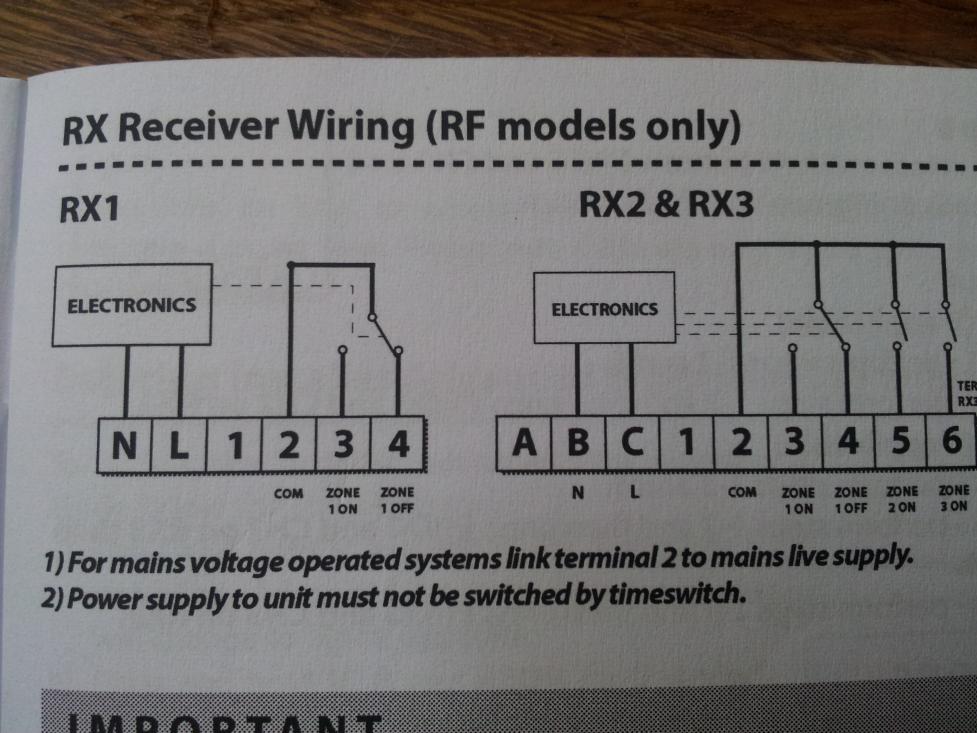

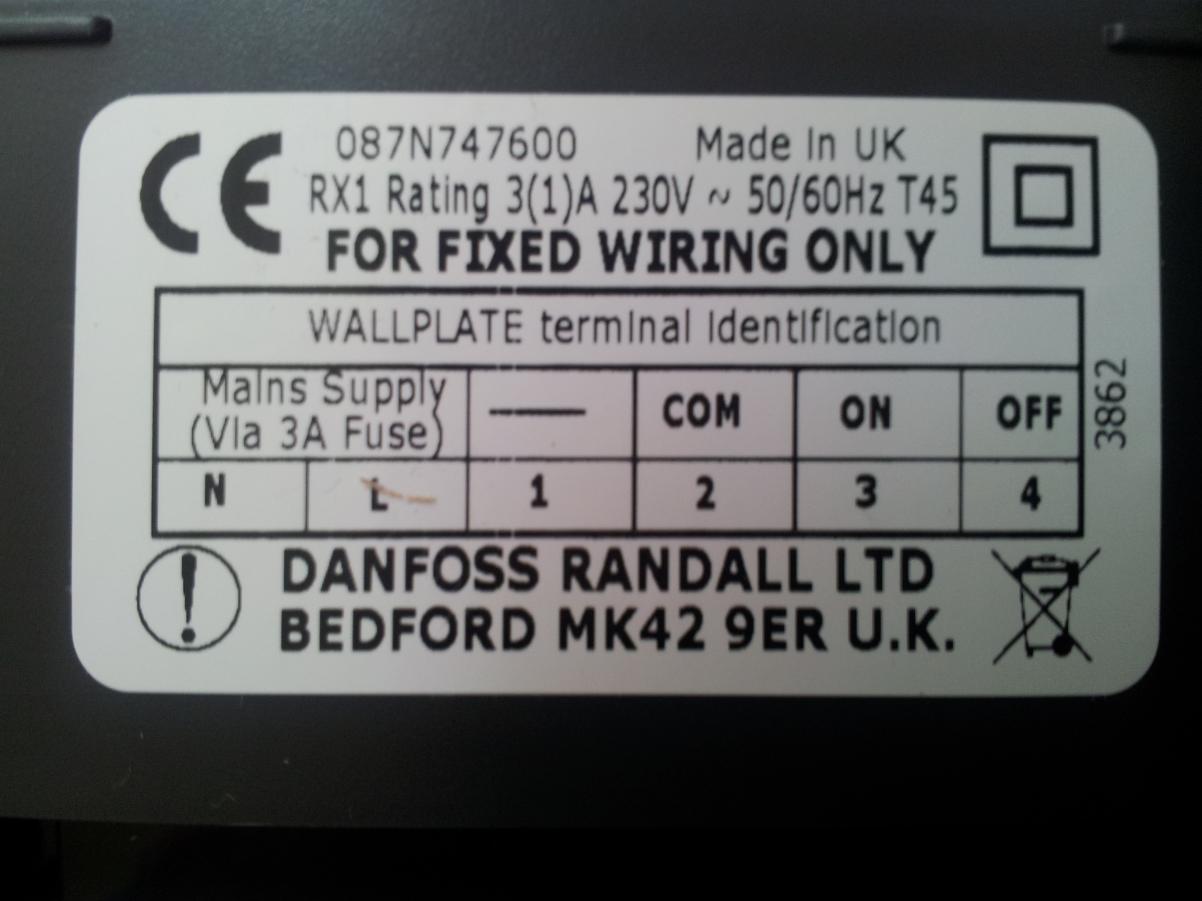

Danfoss RX1


Danfoss RX1

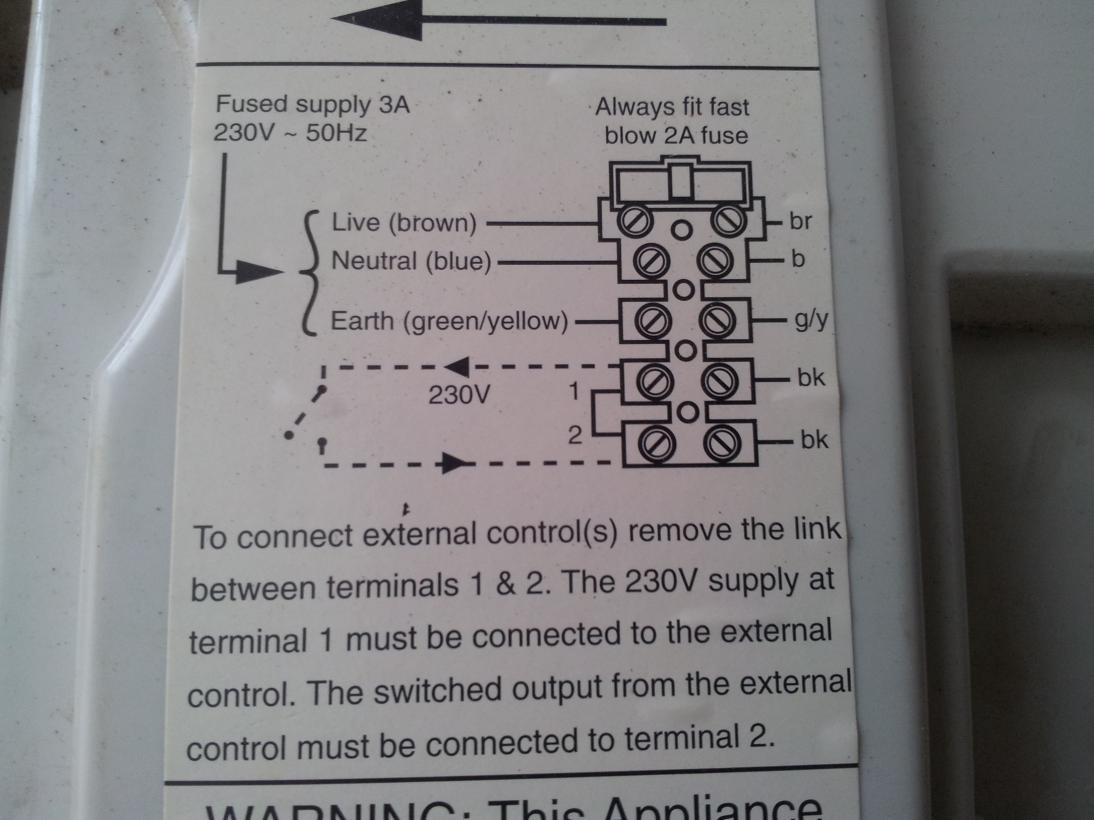

Main Combi HE 30


Main Combi HE 30



[diamondgas]

Picture 3 tells you the boiler and 2 the stat .... its 1 out to 2 in, 3 out to 2 in ... Simples 🙂 Don't forget the earth! 🙂

Welcome to the forum ... I'm sure you'll fathom that one out! By the way ... get it wrong and you could fry the PCB 🙂 may be much more beneficial to call in a pro if you're not that confindent IMHO 🙂



[happyflyer]

If that last photo is the inside of a modern boiler its a disgrace, its a jumble.

The boiler puts out a MAINS feed out on pin 1 and expects to get it back on pin 2 to start the boiler, once you have taken the link out, therefore pin one cable should go on 2 that's the common on the programmer and the cable going back to pin two should go on the ON (3) connection.

Hope this helps



[diamondgas]

If that last photo is the inside of a modern boiler its a disgrace, its a jumble

Just the terminal block come off its mountings happyflyer .. tends to happen when the sparky doesn't leave enough slack for the front to drop down 🙂



[happyflyer]

Just the terminal block come off its mountings happyflyer .. tends to happen when the sparky doesn't leave enough slack for the front to drop down 🙂

Better get the front up fast, hide it all, jeez, I can see what you mean about the terminal strip coming off, there some meaty cable on there now



[diamondgas]

Better get the front up fast, hide it all, jeez, I can see what you mean about the terminal strip coming off, there some meaty cable on there now

The fun bits trying to get all the wires back in and screws tightened down fully on the cover :lol:



[cageyone23]

Picture 3 tells you the boiler and 2 the stat .... its 1 out to 2 in, 3 out to 2 in ... Simples 🙂 Don't forget the earth! 🙂

Welcome to the forum ... I'm sure you'll fathom that one out! By the way ... get it wrong and you could fry the PCB 🙂 may be much more beneficial to call in a pro if you're not that confindent IMHO 🙂

Cheers Pal,
Just to clarify the connections

Stat 2 to Combi 1
Stat 3 to Combi 2
with link removed

BTW not my wiring work. Was like that when I opened it :clap:



[happyflyer]

The fun bits trying to get all the wires back in and screws tightened down fully on the cover :lol:

Worcester Bosh ain't like that Diamond???



[happyflyer]

Cheers Pal,
Just to clarify the connections

Stat 2 to Combi 1
Stat 3 to Combi 2
with link removed

BTW not my wiring work. Was like that when I opened it :clap:

Looks just about right that



[diamondgas]

Cheers Pal,
Just to clarify the connections

Stat 2 to Combi 1
Stat 3 to Combi 2
with link removed

BTW not my wiring work. Was like that when I opened it :clap:

Yep that should do it 🙂



[cageyone23]

Thanks all, much appreciated.



[happyflyer]

Thanks all, much appreciated.

Cage,

are you speaking from experience



[Ermintrude]

Hi All,
First time poster here, so be gentle.

Here's the scenario, I want to pair a Danfoss RX1 Reciever to my Main Combi 30 HE. Even though I consider myself as a confident DIY'er I've hit a brick wall with regards to wiring the terminals on the RX1 to the Main Combi 30 HE.
The Live and Neutral seems straight forward, but I'm at a loss as to the remaining terminal blocks on Thermostat and boiler.

Here are some Pictures that might help.

Any help and guidance would be most appreciated.

Cheers





Danfoss RX1
View attachment 15547

Danfoss RX1
View attachment 15548

Main Combi HE 30
View attachment 15549

Main Combi HE 30
View attachment 15550

If boiler has an internal clock make sure it's on permanent as it will override stat.



[cageyone23]

Cage,

are you speaking from experience

Experience off what?



[cageyone23]

If boiler has an internal clock make sure it's on permanent as it will override stat.

cheers Ermintrude,
