commercial pictures ?

[Chalked]

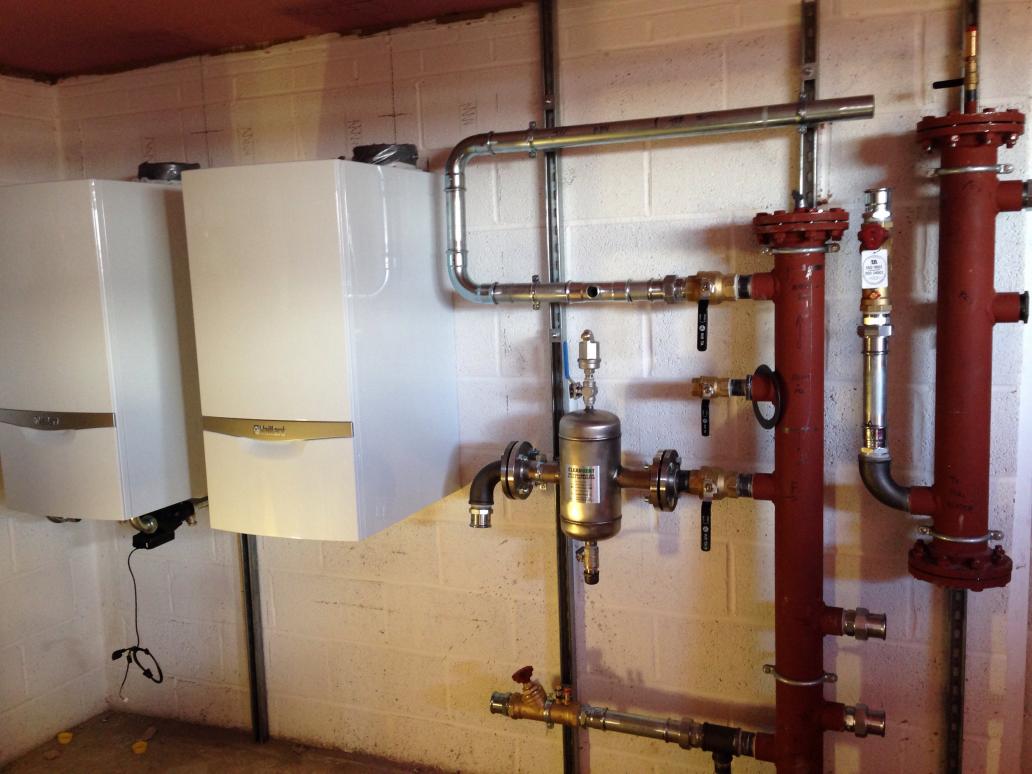

View attachment 24638
2x Vaillant 120kw going in

Wats the reason for two separators?



[ShaunCorbs]

and whats with the use of random iron fittings?



[Scott_D]

A flow header and a return header, they are linked and pre heated by a CHP unit
The m+f Iron bends? A mapress adapter and bend and quite bulky so used them to keep it close



[ShaunCorbs]

A flow header and a return header, they are linked and pre heated by a CHP unit
The m+f Iron bends? A mapress adapter and bend and quite bulky so used them to keep it close

fair enough just looks out of place esp the t



[chris watkins]

I have missed my dose of your nice jobs scott, where is this one? Looks interesting with the CHP into it as well.



[missplumb]

been fitting an ETA 350kw biomass boiler, we arent at commissioning yet butits taking shape, shame the builders didnt have a level when they put the concrete down



[ShaunCorbs]

Cooling unit outside ?



[missplumb]

no, radiator for a woodchip drying floor



[Whyme]

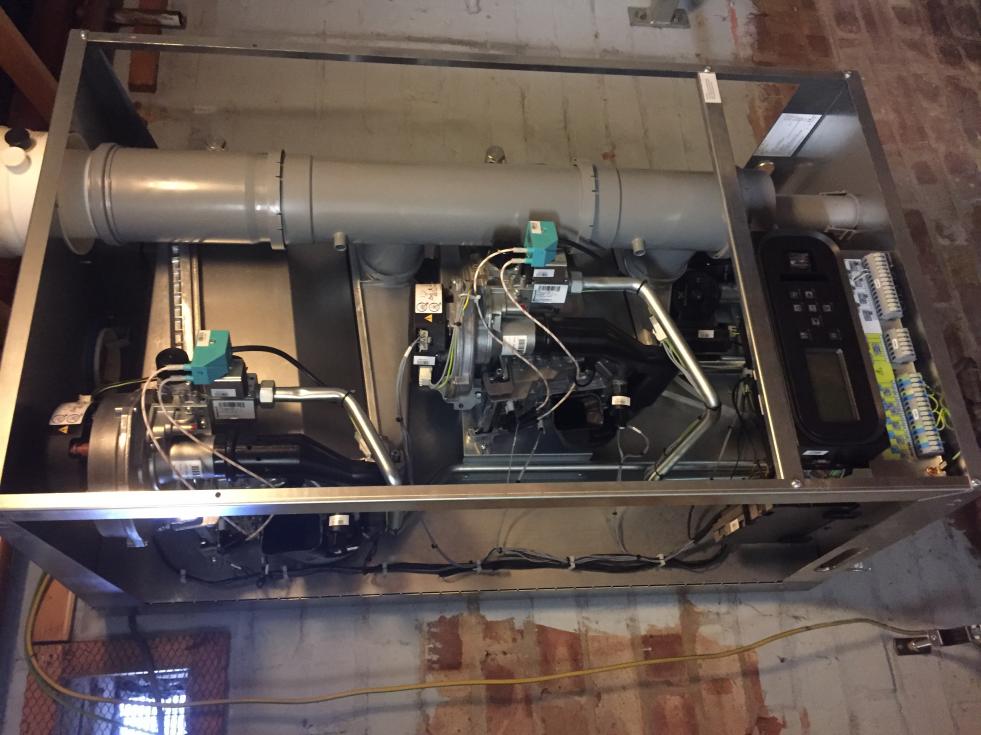

these boilers arent bad anybody else fit one atag xl



[Whyme]

Damn it uploaded sideways how the fluff dya delete



[ShaunCorbs]

Damn it uploaded sideways how the fluff dya delete

edit and remove from post by clicking on it and delete and also remove from attachments



[ShaunCorbs]

View attachment 24638
2x Vaillant 120kw going in

any update?



[Whyme]

no delete bit even on advanced nevermind lol



[ShaunCorbs]

no delete bit even on advanced nevermind lol

🙂



[Whyme]

is that vaillant one of these scott ?



[Whyme]

oh ffs



[Whyme]

🙂

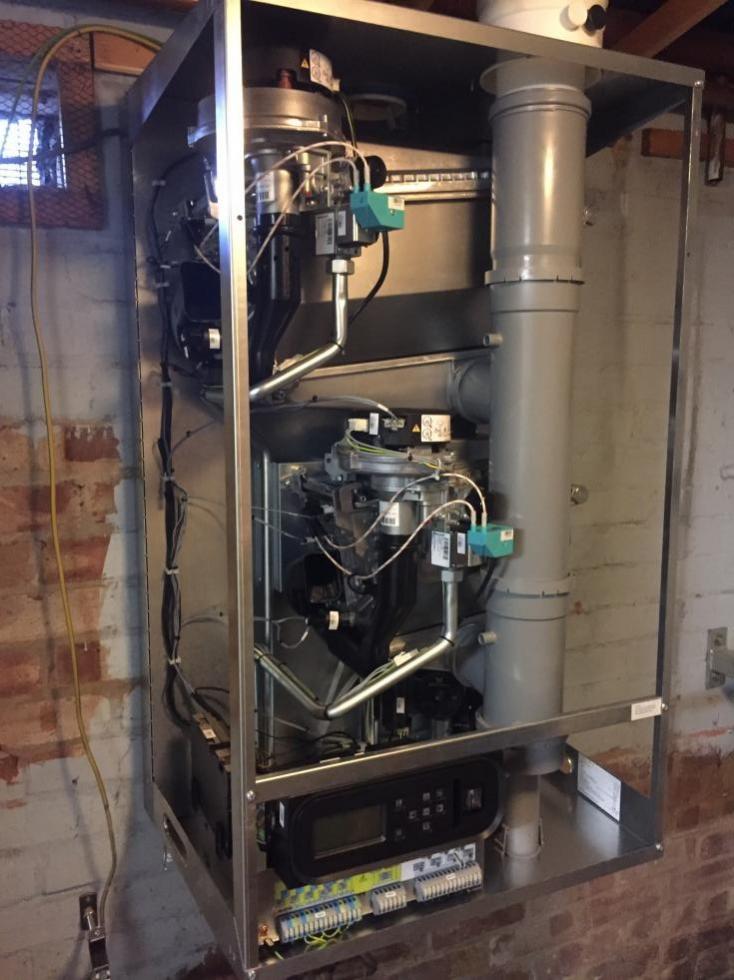

View attachment 26243

how dya do that then



[ShaunCorbs]

how dya do that then

Open it in pic viewer rotate it left save pic then rotate it back right and save

Can do I guild if you want ?



[Howsie]

View attachment 26242 these boilers arent bad anybody else fit one atag xl

Yep. Love them.



[ShaunCorbs]

any more pics why



[Scott_D]

any update?

Its all been finished now, will try and get a picture when the plant rooms cleared out and painted



[missplumb]

have you got any pics showing flow pipework from the boilers into the system,



[Ch4 plumbing]

Just started This one 3 ACV Prestige 120kw on cascade.



[MarkAqua]

Looks good Ch4, neat pipe and frame work.

How come there is no expansion bellows on the pumps? Are the copper lines below the pumps the returns?

I cant quite make out whats what, guessing the 54 or 67 at the bottom is flow from boiler?



[Dotty]

View attachment 27445Just started This one 3 ACV Prestige 120kw on cascade.

Be careful with the prestige, Chris. The condense traps have a tendency to drop off.

Mind you, it might be more the older models.



[Ch4 plumbing]

Be careful with the prestige, Chris. The condense traps have a tendency to drop off.

Mind you, it might be more the older models.

Its not the only problem ive had John, the cascade kit was thrown together and had to remake the lever valves onto it to get them level!



[Ch4 plumbing]

Looks good Ch4, neat pipe and frame work.

How come there is no expansion bellows on the pumps? Are the copper lines below the pumps the returns?

I cant quite make out whats what, guessing the 54 or 67 at the bottom is flow from boiler?

From top, Cylinder Flow - Return, Heat battery Flow - Return, Expansion Vessel feed, Heating Flow And yes the Bottom pipe is the Heating Return, 76mm on the Primary's.

Its as per the Mechanical Drawings with the exception its now turned on its side due to the plant room height.



[MarkAqua]

project ive been mechanical foreman on



[MarkAqua]

I'm havin a mare trying to upload these pics :mad2:



[Whale]

I want to start do plant room again and get away from lennox and reznor units for a bit



[Ry1988]

The soviet

A beast of a burner that has been around since the beginning of time...



[ShaunCorbs]

Looking good

You ever had a look inside?



[Ry1988]

Looking good

You ever had a look inside?

Hi Shaun,

Only a burner service this time round, burner off and stripped down with its massive individual pilot, checked the run of the mill stuff and shined a torch down to check the quarl bricks you can see in photo 3 them glowing nicely - insurance inspection will be a full strip down and climb inside!

Love the big stuff - il put some process pictures up later of working on some interesting burners!



[ShaunCorbs]

Round about 1mw ?

Would love to work on something that sized but there coming far and few between



[Ry1988]

Comtherm burners on bread baking plant - easy to maintain but the linkage kits (in the 2nd photo) are a nightmare to set up - a Honeywell servo motor on left hand side.



[Sparkgap]

Commercial kitchen shoehorned into a tiny first floor room! Then they wondered why there were vent problems 🙂

Fun and games dropping this onto a hospital roof at crack of sparrow!

Guy building a nuclear bunker near here. Does he know something we don't?
