Joule unvented unit

[Best]

I have been out tonight to an oil heating system that has stopped working. Boiler is in garage, but a builders plumber has fitted the red expansion & filling loop and a Joule unvented cylinder, all up in the attic and brand new.
Went to have a look and can't believe it! All plastic & push fit.
NO tundish and NO combination valve!
D1 pipe from T&P valve is 15mm plastic about 2 metres long, then a 22x15x15 push fit tee to accommodate the discharge from heating relief valve and straight into a length of 40mm waste horizontally going to outside as if an ordinary overflow!
Customer assumes plumber just took the missing parts with them. No paperwork done, although the installation & service manual was sitting on top of the unit, with the last page missing.
I have been asked to sort it all!



[ShaunCorbs]

can you put cylinder in garage ? and sounds like a nice job, least the strip out will be easy



[Chalked]

Are you sure the red vessel is for hot water?? You mentioned a filling loop, so would be heating.

The installation sounds a right bodge tho!



[townfanjon]

Would love a pic of this



[Best]

can you put cylinder in garage ? and sounds like a nice job, least the strip out will be easy

I actually suggested the unvented unit could have been put beside the oil boiler in garage.
But probably too late to do that now, - bungalow has had major work done and modernised, tiled floors etc. Most I will ever want to do is fit a complete discharge pipework including supplying a tundish and a proper combination valve all to regs.
Frankly I don't really want to work on a plastic piped unvented unit that has been done by builders idiots - it has just been sat on the flooring in the attic with no strengthening supports. (Luckily there's a wall below that area).
Oddly the customer doesn't want to confront the builder about this



[Best]

Are you sure the red vessel is for hot water?? You mentioned a filling loop, so would be heating.

The installation sounds a right bodge tho!

The red vessel is definitely for the heating. The Joule white expansion vessel with its long flexi hose is fitted beside it, - both screwed onto the Purlin (main wooden roof beam)
It is a complete bodge, as you say! Who would fail to install a combination valve and tundish, only an idiot? I notice the Joule instructions aren't great though tbh.



[Chalked]

The red vessel is definitely for the heating. The Joule white expansion vessel with its long flexi hose is fitted beside it, - both screwed onto the Purlong (main wooded roof beam)
It is a complete bodge, as you say! Who would fail to install a combination valve and tundish, only an idiot? I notice the Joule instructions aren't great though tbh.

Combination valve could have been fitted on the water main. Downstairs.



[lame plumber]

take a peek under the kitchen sink or where the cold main enters the house for the combination valve, been caught out before where a clever clogs hides it there to save on the copper to run the balanced cold main.



[Best]

take a peek under the kitchen sink or where the cold main enters the house for the combination valve, been caught out before where a clever clogs hides it there to save on the copper to run the balanced cold main.

Yes, as Chalked and you suggest, I was thinking same, but couldn't be bothered checking tonight.
That still means the pressure relief valve is wrong place and to add to it - there is a 22mm gate valve fitted on feed to unit which, if turned off would isolate the relief valve from the unit.
I have already pointed this all out to customer including gate valve and possibility the missing combination valve is somewhere else.



[Best]

Would love a pic of this

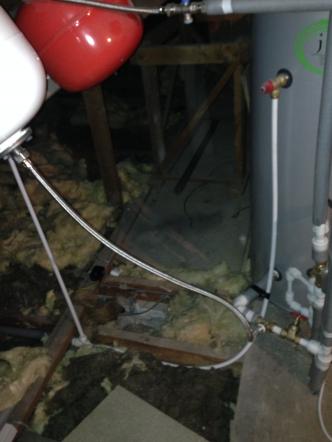

I took a couple of photos.



[ShaunCorbs]

I took a couple of photos.

well chop chop 😀



[Best]

Enjoy



[ShaunCorbs]

hahahahahaha



[Best]

Note the D1 length of plastic push fit and into a push fit tee and shoved into a 40 mm grey waste pipe between joists. This probably just terminates at roof level outside!



[kay-jay]

What the actual ****?



[kay-jay]

I've got a thick labrador who could do a better job than that.
Clearly no building control notification, no g3 qualification and no f-ing clue.



[thompsonbrown]

What a mess!!
Total re-install needed.



[Best]

I've got a thick labrador who could do a better job than that.
Clearly no building control notification, no g3 qualification and no f-ing clue.

I agree. The instructions are poor, but do show the typical layout drawing of discharge pipe to tundish to a gulley and the D2 sizing formula.



[Best]

What a mess!!
Total re-install needed.

Yes, but I doubt if I will be doing that. Can't really do anything with rest of bungalow as it is all finished and impossible to get at no doubt. I really don't want any responsibility for any of those plastic pipes



[tomplumb83]

Whats the point of paying 250quid to do G3 if people can get away with work like that
Mind you, they probably have their G3

Maybe he was just having a bad day?
